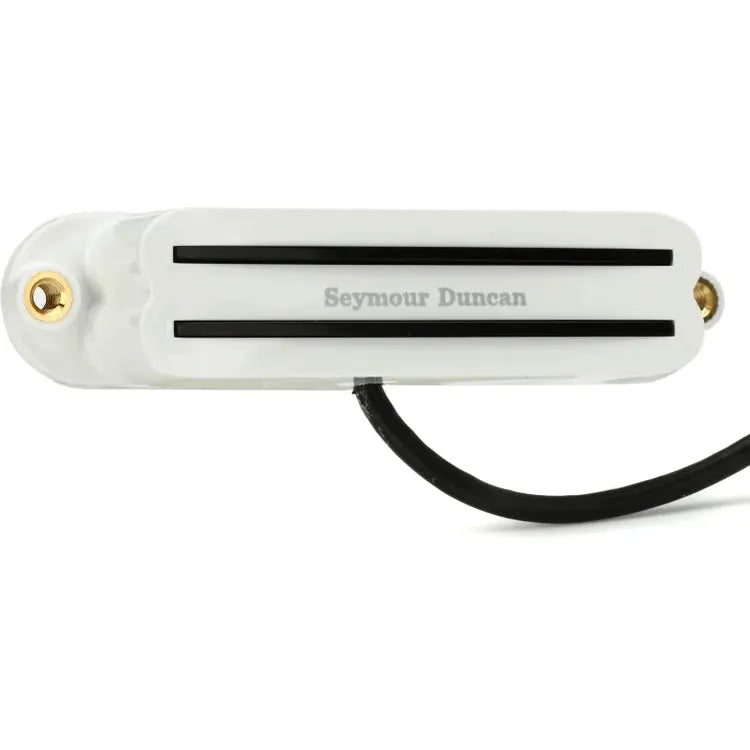

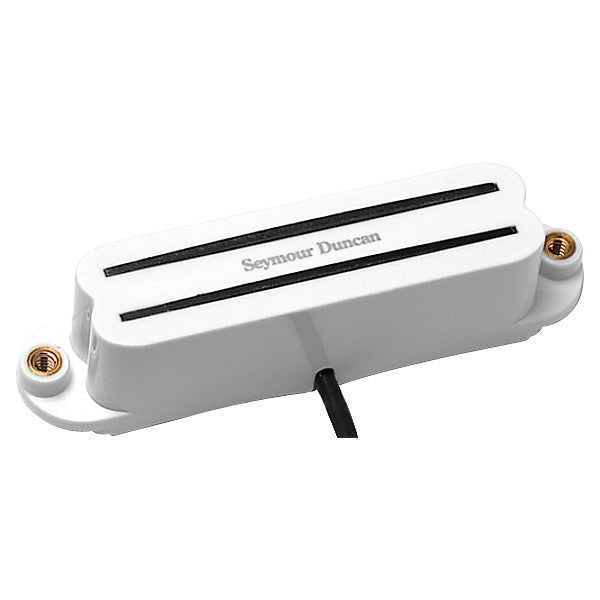

Discover high-output Strat-style power with the Seymour Duncan SHR-1b Hot Rails for Strat - White, available at Irvine Art and Music. Built as a single-coil-sized humbucker for the bridge position, this pickup gives Strat-style guitars a thicker, more aggressive voice while fitting into a standard Strat pickup route.

Humbucker Power in a Strat-Size Format

The SHR-1b Hot Rails is designed to deliver the feel and output of a powerful humbucker in a compact Strat-style pickup size. Its bridge-position voicing adds punch, sustain, and high-gain authority while keeping the installation footprint familiar for Strat-style instruments.

Aggressive Bridge Pickup Voice

With strong output, rich midrange harmonics, and a tight, crunchy response, the Hot Rails bridge model is well suited for rock, hard rock, metal, and heavier lead tones. Chords sound full and powerful, while single-note lines have the extra push needed to stand out.

Dual-Blade Coverage and Flexible Wiring

The dual-blade design helps maintain consistent string coverage, including during bends higher up the neck. A 4-conductor lead wire supports flexible wiring options in compatible guitars, while wax potting helps reduce unwanted squeal in higher-volume playing situations.

Overview:

• Bridge-position single-coil-sized humbucker
• Model: 11205-02-W
• Seymour Duncan SHR-1b Hot Rails for Strat
• White pickup cover
• High-output passive design
• Designed for Strat-style guitars
• Fits standard Strat-style single-coil pickup routes

Key Features:

• Delivers humbucker-style power in a Strat-size pickup
• Bridge voicing with aggressive crunch and strong midrange harmonics
• Dual-blade construction for consistent string coverage
• 4-conductor lead wire for flexible wiring options
• Wax potted to help reduce unwanted squeal
• Useful for rock, hard rock, metal, and high-gain lead tones
• Pairs well with other Seymour Duncan Rails pickups in Strat-style pickup configurations

Tech Specs

• Type: Humbucker
• Position: Bridge
• Active/Passive: Passive
• Magnet Material: Ceramic
• Number of Conductors: 4 wire plus shield
• DC Resistance: 16.6K
• Connectivity: Soldered
• Number of Strings: 6
• Covering: Covered
• Color: White
• Format: Strat-sized
• Features: Blade Magnets
• Manufacturer Part Number: 11205-02-W
