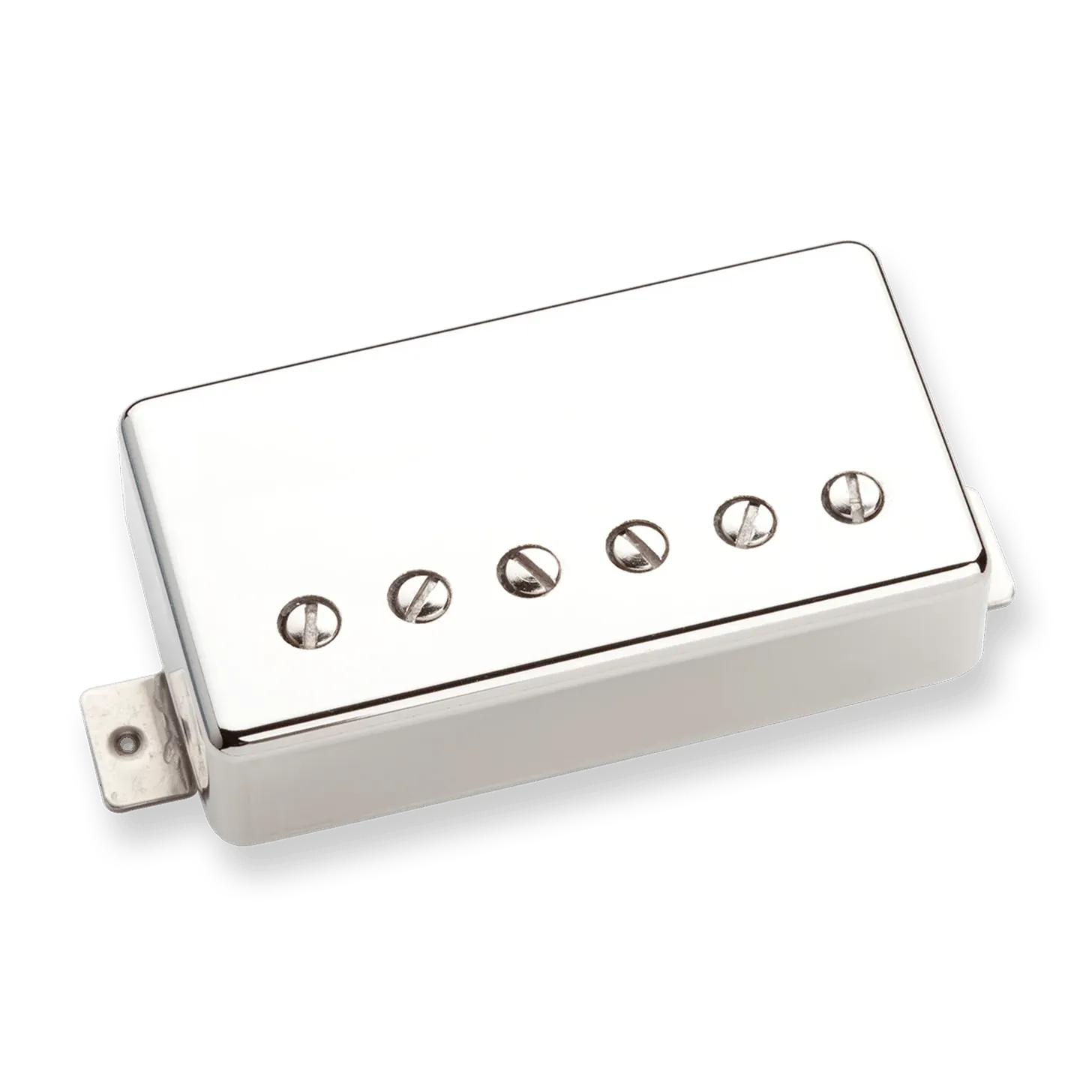

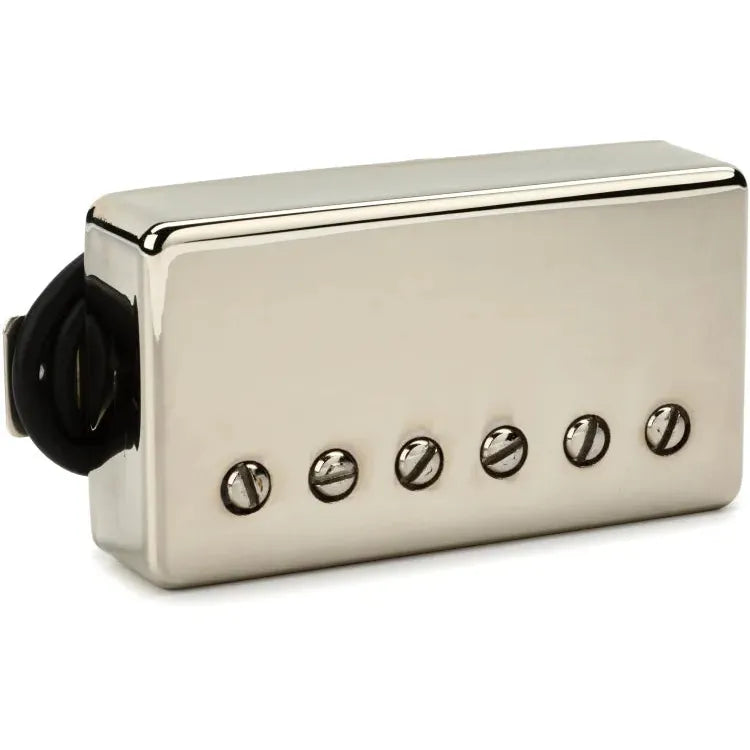

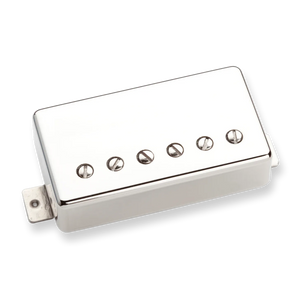

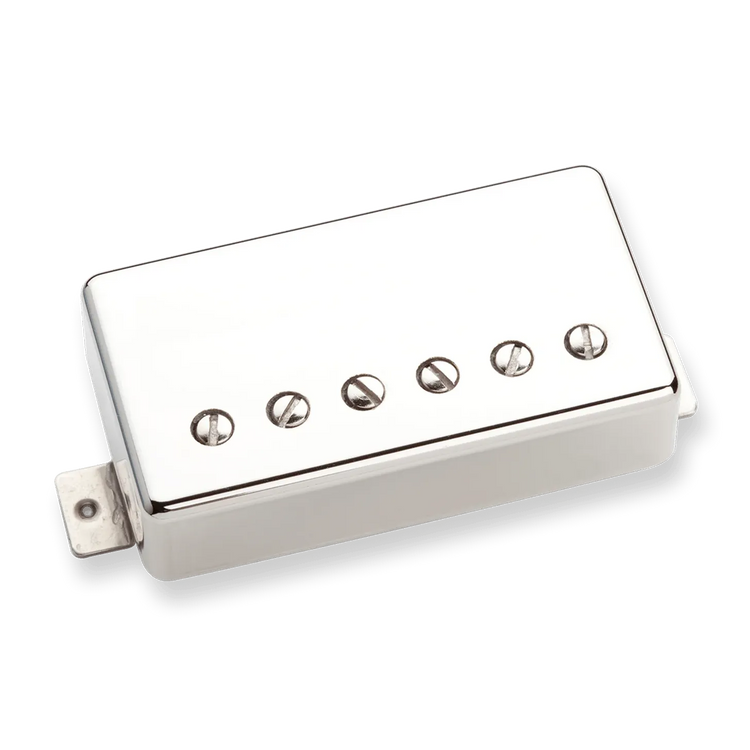

Discover iconic hot-rodded humbucker tone with the Seymour Duncan SH-4 JB Pickup - Nickel Cover, available at Irvine Art and Music. Designed for the bridge position, the JB delivers strong output, singing sustain, and clear upper-mid presence, making it a versatile upgrade for rock, hard rock, metal, blues, and expressive lead playing.

Powerful Bridge Humbucker Voice

The SH-4 JB is built to give the bridge position a bold, articulate sound with plenty of harmonic content. Its high-output design helps drive an amp with authority while retaining enough clarity for chords, riffs, and fast lead passages.

Alnico 5 Response and Sustain

An Alnico 5 magnet gives the JB a firm attack, focused low end, and bright upper-mid character. This combination helps notes cut through a mix while still offering the sustain and expressive feel players expect from one of Seymour Duncan’s most widely used humbuckers.

Nickel-Covered Classic Look

The nickel cover gives this JB model a clean, traditional appearance that works well with a wide range of guitar styles. A 4-conductor lead wire supports flexible wiring options, while vacuum wax potting helps reduce unwanted squeal in higher-volume playing situations.

Overview:

• Bridge-position humbucker pickup
• Model: 11102-13-NC
• Seymour Duncan SH-4 JB Model
• Nickel-covered finish
• High-output passive design
• Designed for hot-rodded humbucker tone
• Suitable for 6-string electric guitars with standard humbucker routing

Key Features:

• Strong output with singing sustain and harmonic detail
• Alnico 5 magnet
• Bridge DCR: 16.6k
• 4-conductor lead wire for flexible wiring options
• Nickel silver bottom plate
• Vacuum wax potted to help reduce unwanted squeal
• Useful for rock, hard rock, metal, blues, and versatile lead tones

Tech Specs

• Type: Humbucker
• Position: Bridge
• Active/Passive: Passive
• Magnet Material: Alnico V
• Number of Conductors: 4 wire plus shield
• DC Resistance: 16.6K
• Connectivity: Soldered
• Number of Strings: 6
• Covering: Covered
• Color: Nickel
• Manufacturer Part Number: 11102-13-Nc
